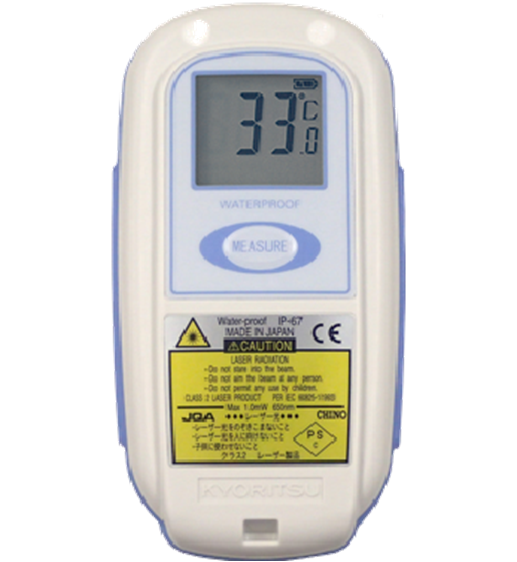

Kyoritsu 5510 Infrared Thermometer
Waterproof hand-held Infrared Thermometer.
Safe even if getting wet. Dustproof and waterproof structure of IP67.
Possible to wash
Please feel secure to use the product on the spot, made from ABS resin of antibacterial specification.
Shock-proof structure: No damage even if dropped from the height of 1m.
With auto-power-off function, preventing consumption of the battery
Wide Temperature Range of -40_C to 300_C
Small and light: Possible to measure easily by one hand.
Portable type: Convenient to carry
| Measuring Range | -40_C - 300_C | |
|---|---|---|
| Display Resolution | 0.5_C . 1_C for below -20_C and over 100_C | |
| Measuring Accuracy | When the ambient temperature is 25 2_C and the emissivity () is 1, | |
| 0 - 300_C: | bigger value of either of 1% of the measured value 1dgt or 2_C 1dgt. | |
| 0 - -30_C: | 3_C 1dgt | |
| below -30_C: | 5_C 1dgt | |
| Repeatability | within 1_C 1dgt | |
| Response | 1 sec (90% response) | |
| Measuring Diameter | (45mm/500mm(Optical sensitivity: 90%) | |
| Collimation | Before shipment: 0.95. The value can be altered between 0.8and 1.0 with the slide switch at the lower part of the battery compartment (by 0.05 steps). Laser beam (650nm 1mW JIS class2) specifies the center. | |
| Water-Proof Property | IP67 | |
| Auto Power Off | If no key is pressed for 30 seconds, the power is shut off automatically. | |
| Shock Proof Property | This instrument or its function/performance will not be damaged even if it is dropped on the p tile floor from 1 meter high. | |
| Operating Temperature | 0 - 50_C | |
| Operating Humidity | 90% rH and below (no condensation) | |
| Storage Temperature | -20 - 55_C (no condensation) (Note): In the case of longterm storage, the batteries should be removed. | |
| Battery | LR03(AAA)(1.5V) x 2 | |
| Battery Life | Approximately 10 hours for continuous use | |
| Housing material | ABS (antibacterial) | |
| Dimension | 120 60 54mm (Maximum value for each direction) | |
| Weight | 123g approx. | |
| Accessories | LR03(AAA) x 2 Instruction Manual Strap | |
| Approved Standard | CE marking: EMI EN61326 Class B, EMS EN61326 Annex C | |
