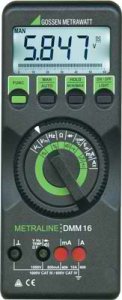

Gossen Metrawatt METRALINE DMM16 TRMS Digital Multimeter with Analog Bar Graph, Temperature Measurement and Calibration Interface
Multimeters of the economy series METRALINE are auto-range devices for universal use in all areas of electro-technics. They provide the user with the time-tested safety and reliability from Gossen Metrawatt at a convincing price performance ratio.
The METRALINE DMM16 provides you with all of the measuring functions you’d expect from a versatile, world class multimeter: convincing technology with all voltage, resistance, current and temperature measuring ranges, and lots of other measuring functions and automatic features such as frequency and duty cycle measurement.
- Resolution: 6000 digits (3 6/7 place) and analog bar graph (60 points)
- Basic accuracy: 0.5% VDC
- Bandwidth, V AC TRMS: 2 kHz
- Patented automatic blocking sockets (ABS)
- Voltage: VDC 100 μ to 1000 V and VAC TRMS 100 μ to 1000 V
- Current: IDC 10 μ to 10 A (16 A 30 sec.) and IAC TRMS 10 μ to 10 A (16 A 30 sec.)
- Resistance: 100 mOhm to 40 MOhm
- Temperature: -50.0 to +800.0° C, type K thermocouple
- Frequency measurement: 0.1 Hz to 1 MHz
- Duty cycle measurement: 2% to 98% (1 kHz)
- RPM measurement: 60 RPM to 99.99 thousand RPM
- Capacitance measurement: 10 pF to 400 μF
- Continuity and diode testing: 3 V
- Min-Max measured value storage and DATA hold
- DAkkS calibration certificate - optional
- Measuring category: 600 V CAT IV, 1000 V CAT III
