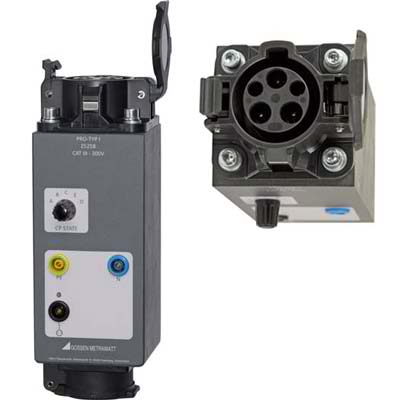

Gossen Metrawatt PRO-TYP I Test Adapter for Charging Stations
Single Phase Test Adapter with Type 1 Plug for Testing for the Effectiveness of Protective Measures at Electrical Charging Stations with the Profitest Master,
Simulating Fictitiously Connected Electric Vehicles and
Simulating the Current-Carrying Capacity of Cord Sets per IEC 61851-1
- Vehicle Simulation (CP)
Vehicle states A through E are selected with a rotary switch.
- Cable Simulation (PP)
via permanently wired cable coding
- Fault Simulation
Simulation of a short-circuit between CP and PE by means of a rotary switch
- Indication of Phase Voltages via LEDs
Vehicle Simulation (CP)
States A, B, C, D and E can be simulated in accordance with IEC 61851. The various vehicle states are selected by means of a
rotary switch.
| State A | No vehicle connected |
| State B | Vehicle connected, but not ready for charging |
| State C | Vehicle connected and ready for charging, venting of charging area not required |
| State D | Vehicle connected and ready for charging, venting of charging area required |
| State E | Error – short circuit between CP and PE via internal diode |
