Megger EZ Thump 3 kV
- Only dual stage capacitor LV fault locator in the market
- 500J @ 1.5kV , 500J @ 3kV
- Compact and lightweight, 75 lbs (34 kg)
- Battery and AC line operation; field-replaceable battery
- Automatic end of cable and distance to fault indication
- 47 or 94 mA current, depending on capacitor setting
- F-OHM safety feature to ensure safe grounding
- Interface for remote EMERGENCY OFF box
- HiBrite color display for excellent outdoor visibility
- TDR prelocation of very low resistance faults
- ARM® prelocation of high resistance/flashover faults with inductive type filter
- Fault pinpointing, high- and low-resistive fault
- Sheath testing and sheath fault locating (add. equipment required)
- USB interface for up- and download
- EZPROT software to graph DC Hipot test results

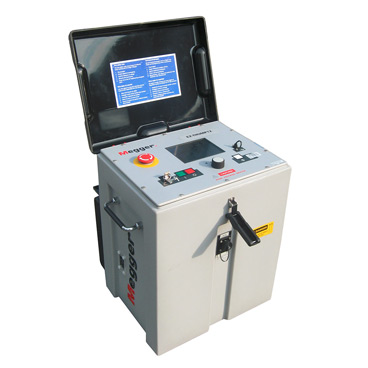

The EZ Thump 3 kV is a compact and portable cable fault location system specifically designed for fault locating shielded and unshielded low voltage power cables. It's ideally suited for all typical fault locating operations on LV cables either in industrial applications up to 3 kV, street light fault locating or fault locating of LV power circuits in the utility industry. It is the only unit on the market with a dual stage 1.5 / 3 kV capacitor.
The EZ Thump is a truly smart test set as it leads you through the entire testing process, meaning there is minimal training required to use the unit. Combined with the simple E-Tray GUI, it is perfect for operators who do not use the system on a regular basis. It provides 4 different methods of fault locating of LV cables:
